Verkline Adjustable Rear Outrigger Arms R4 - Lancer EVO X

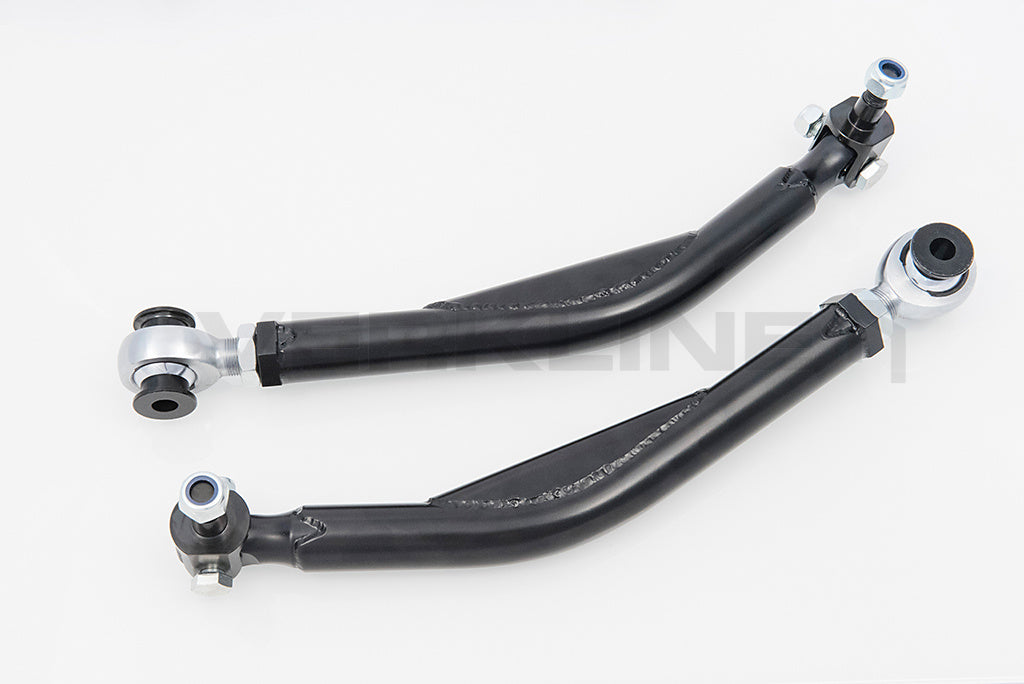

Mitsubishi Lancer EVO X - REAR LONGITUDINAL ARM (Adjustable Rear Outrigger Arm) The kit consists of all the parts visible on the pictures: - Two rear light steel T45 35 mm outrigger wishbones (left right) - Two arm fixing C45 steel mounts - Two M22 rod ends solid kevlar (motorsport rod ends) - Two M22 half size screw locking nuts - Two uniball bearings (motorsport rod ends) - Eight spacer sleeves for assemble of the arms in the rear subframe Features: - R4 spec rear suspension arm - Comes preassembled ready for fitment in the car - R4 rally kit compliant (meats FIA homogation rules for Lancer EVO X) - Same rod end suppler as for original R4 kit - Can be used with standard rear chassis and uprights pickup points - Greater strength over OEM wishbones Technical details - Full 3D CAD designed - FEA tested and additional reinforcement to the original design was made - Manufactured from T45 steel - Powder painted black Wishbones are powder painted in black as standard.

Rear Longitudinal Arm ( CE114-117 ) - 2 pcs
			pcs
1	CE114-168	Rear Fork on hub	1
2	RG14MTE.MM29	Rodobal 29-14	1
3	RM22XE.C0	Rodobal M22x1,5	1
4	CE114-186	Complete longitudinal rod	1
5	CE114-182	Longitudinal link adapter on frame	2
6	CE114-185	Longitudinal link adapter on chassis	2
9	CE114-202	Nut M22x1.5	1
10	Seeger-SB29	Seeger SB29	1
